Silicon diode temperature sensor

Product Category：Cryogenic system
Product Model：Si435
Product Number：1802
Product Brand：Scientific Instruments

Previous： Temperature detector

Next： No products

Specifications
Description
Download
Application

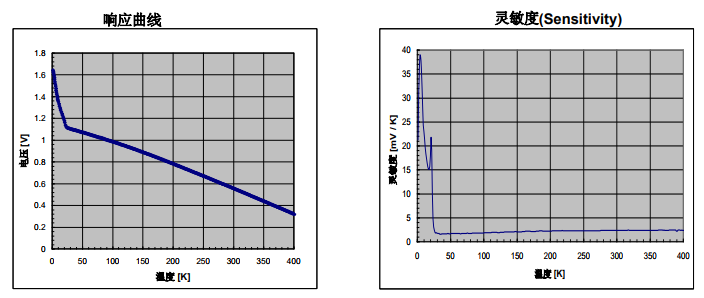

Specifications Range: 1.5K – 500K
Excitation: 10µA ±0.1%
Repeatability: 75mK @4.2K, 0.35K @77K, 0.25K @273K
Magnetic Field Use: Not recommended for fields above 0.1 Tesla below 40K
Use in Radiation: Not recommended for use in high radiation environments.
Leads: 37 AWG Copper, Polyimide insulation, 3 inches standard length

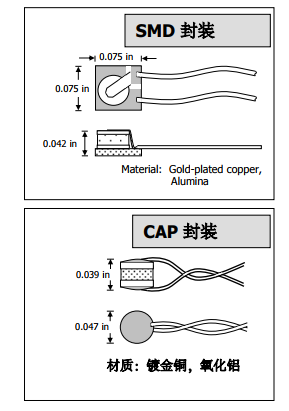

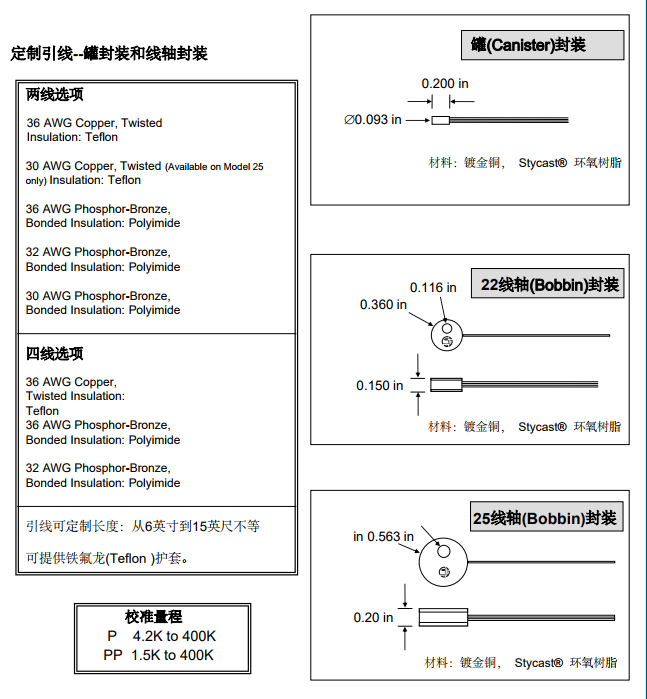

Mounting Options: CAP, Canister, 22 Bobbin, 25 Bobbin (see Reverse

Si435 Silicon Diodes offer a great value for applications requiring a wide temperature range. They are interchangeable with the Si430 in applications below 400K but are rugged enough to withstand exposure to 500K. The new CAP package is the smallest encapsulated diode mount on the market.

Download：Operation Manual
